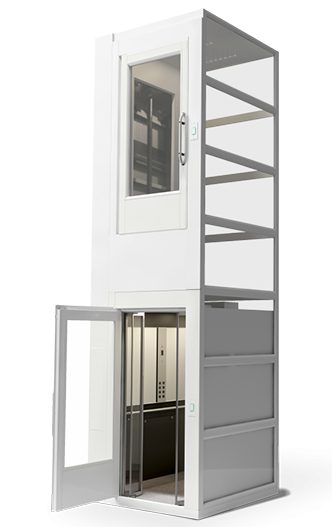

Home lift

Home lifts are designed for houses and buildings where a conventional lift is not the best answer, because of the space or the building work it would take. The self-supporting structure allows installation with far smaller demands on the pit and on the headroom above the top floor.

A home lift is therefore an excellent answer both for new houses and for existing ones, where the aim is better comfort and access between floors with the least possible building work.

Advantages

  • minimum pit below the lowest floor of 200 mm,
  • minimum headroom above the top floor of 2,450 mm with manual doors or 2,600 mm with automatic doors,
  • no machine room needed: the power unit and controller sit in a compact cabinet,
  • suited to installation in existing buildings,
  • designed to EN 81-21 for lifts installed in existing buildings,
  • automatic passenger rescue on loss of mains power,
  • low electricity consumption,
  • quiet running, at around 45 to 50 dB,
  • quick and straightforward installation,
  • safety device protecting the engineer in the pit and on the car,
  • a choice of infill between the uprights, including aluminium or glass.

Home lifts give a comfortable, safe and well-finished answer to vertical transport in houses, even where there is no room for a conventional lift.
